Our Product

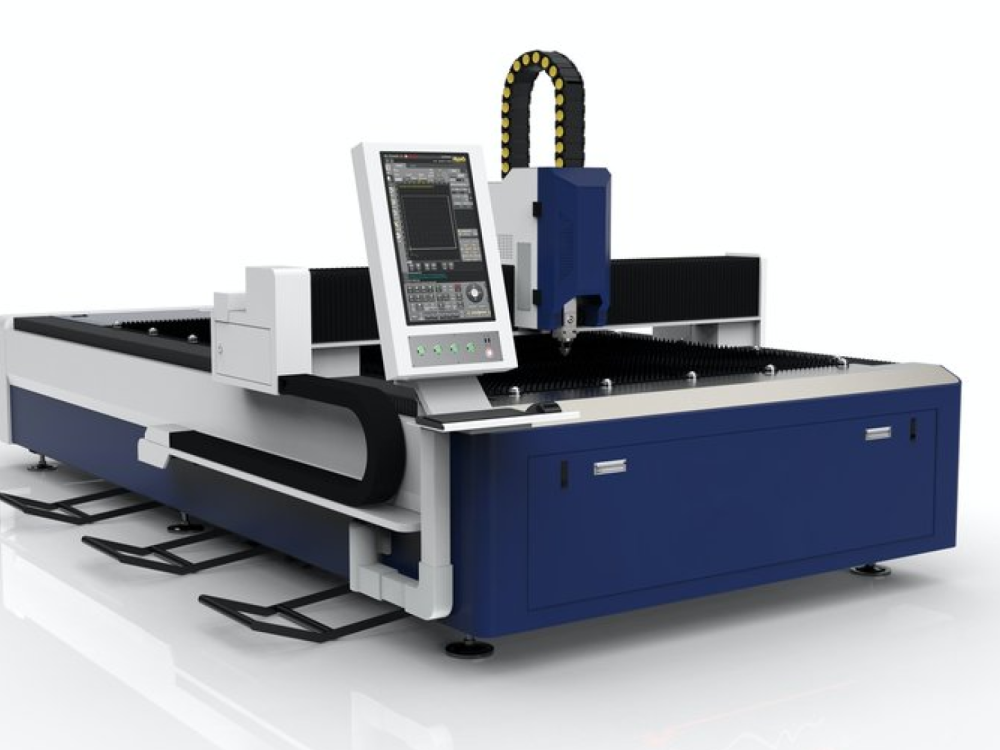

Open Type Single Table
Technical data:
- Laser power (W): 1000~3000
- Working area (mm): 1500x3000
- Maximum Speed (m/min): 80
- Acceleration: 1.0G
- Positioning accuracy (mm): ±0.03
- Repeated Positioning accuracy (mm): ±0.02
- Supply voltage: 415V/50Hz
- Working environment: 0~45℃, Humidity:≤80%
Features:
- Gantry double rack & pinion, double servo motor drive system, 1G acceleration to ensure higher production efficiency;
- Tempering treatment and vibration aging to eliminate stress and achieve geometric accuracy of 0.03mm
- Aluminium Crossbeam, light weight, high rigidity, high dynamic performance
- Auto-focus laser cutting head, integrated with detailed cutting parameters, easy operation
- Leapfrog function, parabolic motion between the cutting contours. Automatic frog jump during switching contours, high cutting efficiency and accuracy
- Detection functions, automatic diagnosis, fault isolation, fault analysis and data display, fast trouble shooting, effectively reduces maintenance costs
- Professional nesting software, automatic edge searching and sharp corner smoothing functions, high-speed piercing and fast array scanning cutting functions.
Our Product

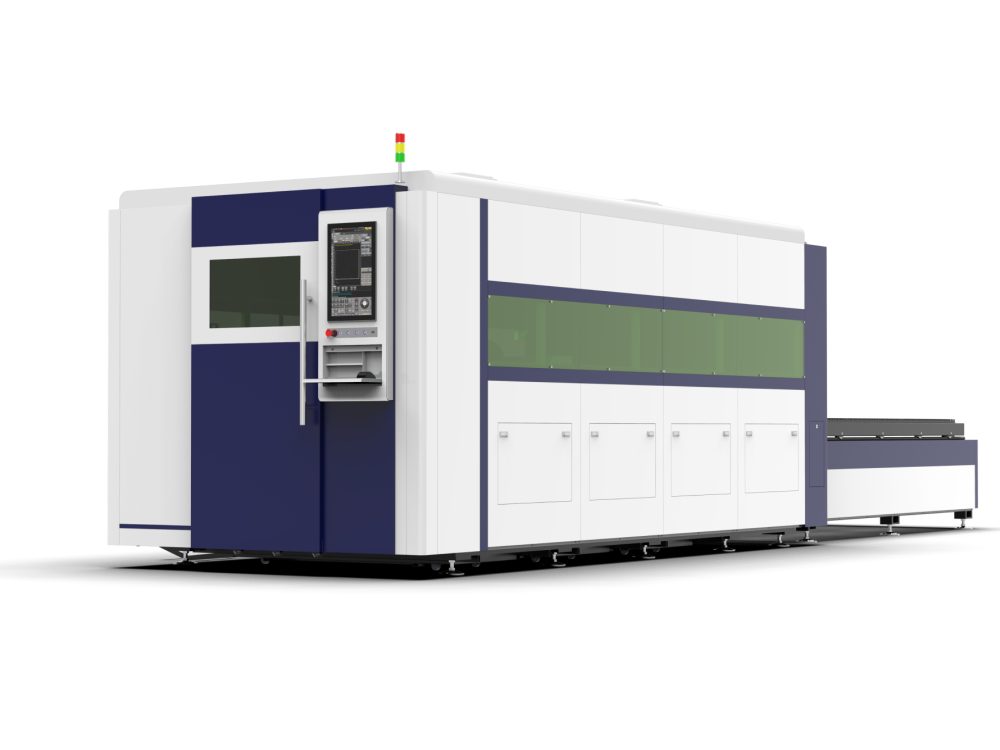

Closed Type Dual Exchange Table
Technical data:
- Laser power (W): 3000~12000
- Working area (mm): 3000x1500; 6000x1500; 4000x2000; 6000x2000
- Maximum Speed (m/min): 120
- Acceleration: 1.2G
- Position accuracy (mm): ±0.03
- Repeated position accurcy (mm): ±0.02
- Supply voltage: 415V/50Hz
- Working environment: 0~45℃, Humidity:≤80%
Features:
- Gantry double rack & pinion, double servo motor drive system, 1.2G acceleration to ensure higher production efficiency;
- Plate welded heavy duty machine bed, heat treated, tempered and vibration aged to eliminate stress and achieve geometric stability and high accuracy
- Aluminium Crossbeam, light weight, high rigidity, high dynamic performance
- FSCUT 4000E the professional laser control system and laser cutting software have the functions of intelligent graphic layout, smooth processing of sharp corners, high speed piercing, etc., have super stability and anti-collision ability
- Auto-focus laser cutting head, integrated with detailed cutting parameters, easy operation
- Leapfrog function, parabolic motion between the cutting contours. Automatic frog jump during switching contours, high cutting efficiency and accuracy
- Detection functions, automatic diagnosis, fault isolation, fault analysis and data display, fast trouble shooting, effectively reduces maintenance costs
- Professional nesting software, automatic edge searching and sharp corner smoothing functions, high-speed piercing and fast array scanning cutting functions.
Our Product

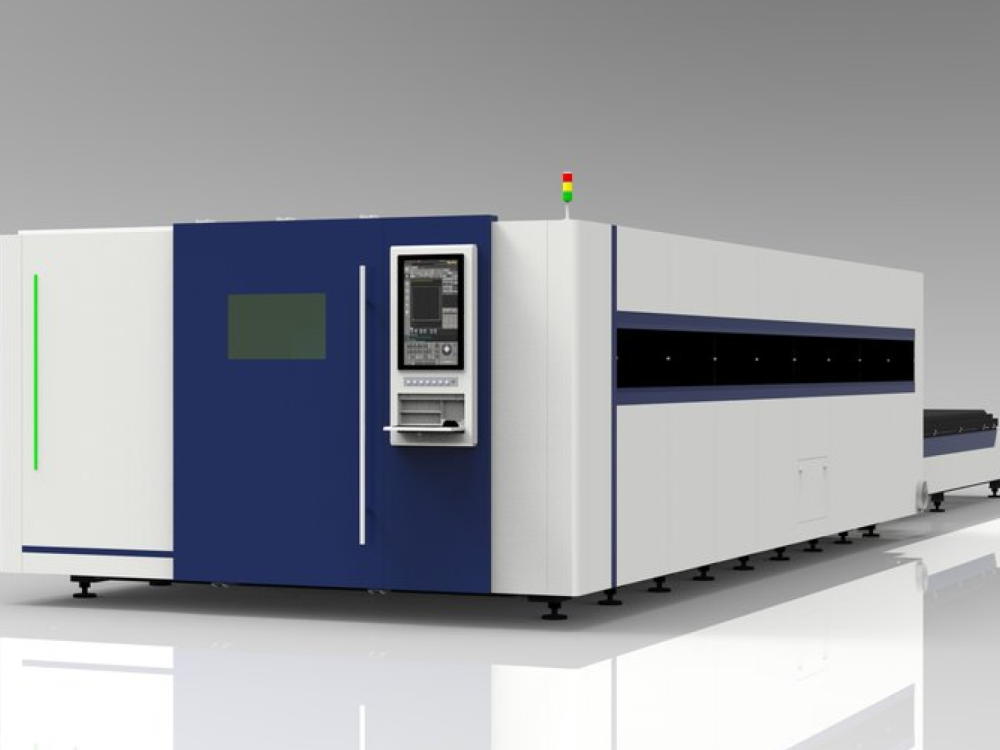

High Power Laser Cutting Machine
Technical data:
- Laser power (W): 6000~30000
- Working area (mm): 3000x1500; 4000x2000; 6000x2000; 6500x2500
- Maximum Speed (m/min): 140
- Acceleration: 1.5G
- Positioning accuracy (mm): ±0.03
- Repeated Positioning accuracy (mm):±0.02
- Supply voltage: 415V/50Hz
- Working environment: 0~45℃, Humidity:≤80%
Features:
- Gantry double rack & pinion, double servo motor drive system, 1.5G acceleration to ensure higher production efficiency;
- Plate welded heavy duty machine bed, heat treated, tempered and vibration aged to eliminate stress and achieve geometric stability and high accuracy
- Aluminium Crossbeam, light weight, high rigidity, high dynamic performance
- FSCUT 8000E the professional laser control system and laser cutting software have the functions of intelligent graphic layout, smooth processing of sharp corners, high speed piercing, etc., have super stability and anti-collision ability
- Auto-focus laser cutting head, integrated with detailed cutting parameters, easy operation
- Leapfrog function, parabolic motion between the cutting contours. Automatic frog jump during switching contours, high cutting efficiency and accuracy
- Detection functions, automatic diagnosis, fault isolation, fault analysis and data display, fast trouble shooting, effectively reduces maintenance costs
- Professional nesting software, automatic edge searching and sharp corner smoothing functions, high-speed piercing and fast array scanning cutting functions.
Our product
Large Format Gantry Style Laser
Technical data:
- Laser power (W): 12000~60000
- Working area (mm): 12000x2500; 24000x2500; 13000x3000; 26000x3300
- Maximum Speed (m/min): 60
- Acceleration: 0.6G
- Position accuracy (mm): ±0.1
- Repeated position accurcy (mm): ±0.1
- Supply voltage: 415V/50Hz
- Working environment: 0~45℃, Humidity:≤80%
Features:
- Ultra large format and high power with bevel cutting function
- Modular design, plate welded heavy duty machine bed, heat treated, tempered and vibration aged to eliminate stress and achieve geometric stability and high accuracy
- 5 Axis, Bevel cutting, auto-focus laser cutting head
- FSCUT 8000E the professional laser control system and laser cutting software have the functions of intelligent graphic layout, smooth processing of sharp corners, high speed piercing, piercing de-slag function, fusion cutting function
- Professional nesting software, automatic edge searching and sharp corner smoothing functions, high-speed piercing and fast array scanning cutting functions.
Our product

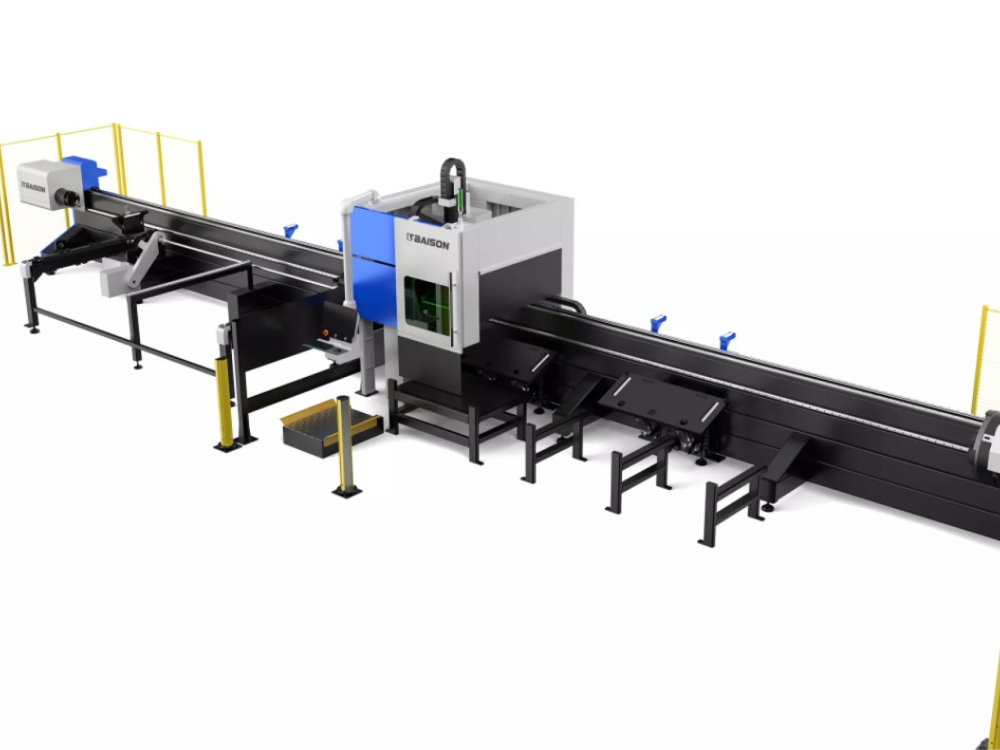

Tube laser cutting machine
Technical data:
- Laser power (W): 3000~12000
- Chuck diameter (mm): 80-500
- Loading length (mm):6000 -12000
- Unloading length (mm): 2000 - 12000
- Wall thickness (mm): 1-20
- Maximum tube weight (kg): 100-2000
- Maximum linear speed (m/min): 100
- Maximum rotational speed (rpm): 100
- Positioning accuracy (mm): ±0.05
- Repeated Positioning accuracy (mm):±0.03
- Supply voltage: 415V/50Hz
- Working environment: 0~45℃, Humidity:≤80%
Features:
- 2, 3 or 4 Chuck design depending on requirements
- Square hole chuck design increases processing capacity
- Various options of semi-automatic and automatic loading and unloading equipment
- FSCUT5000S numerical control system based on Windows software, very easy to use
- Capacitive laser cutting head, high induction accuracy, responsive, stable and reliable performance
- High precision servo proportional valve, precise control of cutting auxiliary gas pressure and chuck clamping force
- Automatic bundle feeding function (optional)
- Complete cutting process parameter library, user-friendly parameter interface
- The linear positioning speed up to100m/min, the rotary positioning speed up to 120 rpm
- Professional tube cutting software to achieve "Full time cutting, Efficient cutting"
- Automatic identification system of tube section (optional) for the mixed tubes feeding
- LServo following support device, during tube feeding and rotating, support device keeps contacting with the surface of the tube
Our product

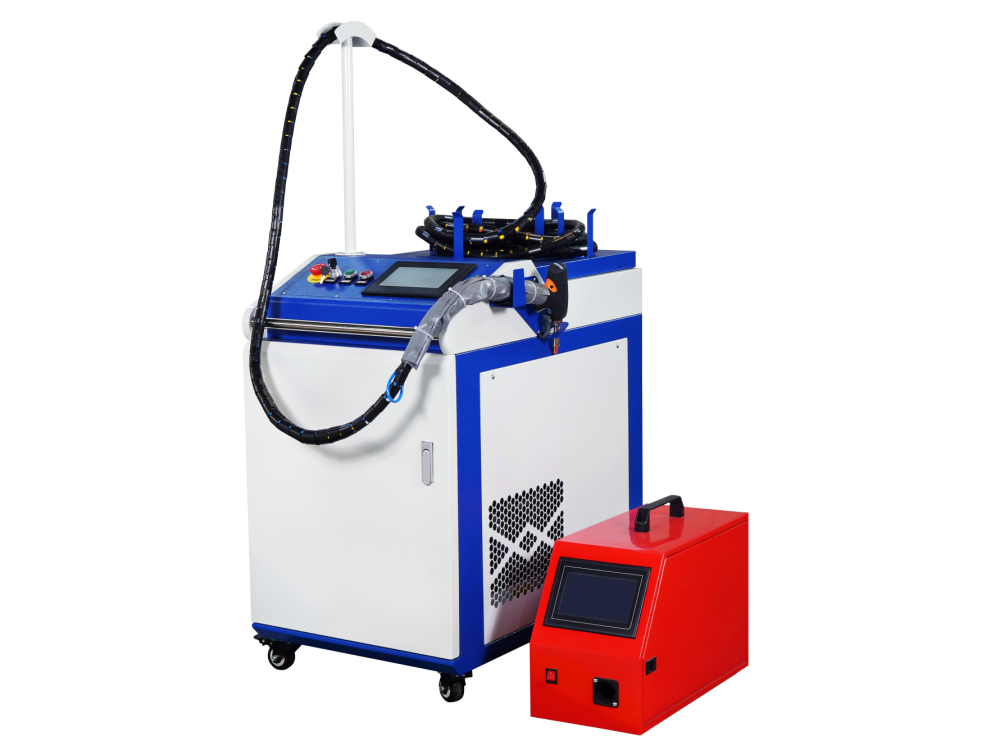

Laser welding machine
Technical data:
- Laser power (W): 1500; 2000; 3000
- Wavelength (nm): 1070
- Material thickness (mm): 1-8
- Welding depth (mm): 0.2 - 7
- Supply voltage: 415V/50Hz
- Working environment: 0~45℃, Humidity:≤80%
Features:
- Integrated structure design, comply with majority of the laser source available in the market;
- Low running cost, only 1~2Kw/h electricity and little nozzle cost;
- Equipped with low gas pressure alarm function
- Touch screen control panel, easy for parameter setting
- Dual-temperature control water chiller, support both laser source and welding head, ensure long term stable operation;
- O-type, Line-type and dot-type wobble welding types, swing width ranges 0~5mm;
- Ergonomic design welding head for easy long-time operation.
